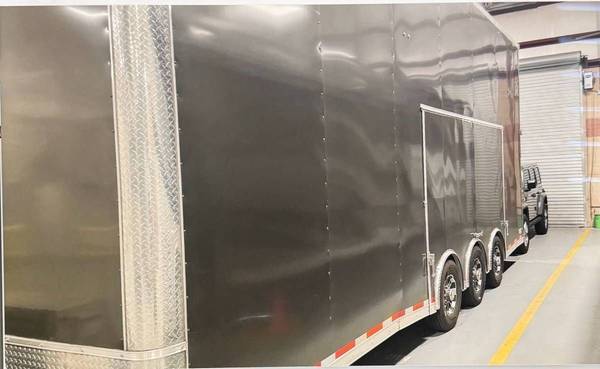

Stacker Trailer
MFG Model Num: DCSTT8.5X26TTA5
Trailer Size: 8.5x26
Trailer Color: Charcoal
Standard Features:
(BEST OFFER)
8.5x26 TTA5 Bullnose Triple Axel 7000's Torsion Stacker 2023
Premium Escape Door, Charcoal,
Trailer Weight lbs. GVWR 21,000
2-5/16" Coupler with A-Frame
60'' Triple Tube Tongue
4" x 6" Welded Tube Main Frame
133'' Interior Height, 100” Wide Trailer
NO Beavertail
7000# Triple Dexter Spring Axles with E-Z Lube Hubs
1''x3'' tube walls16'' On Center
2''X5'' Steel Tube Crossmembers & Outriggers 16” On Center
16" On Center Floor & Walls & Ceiling
48" Aluminum Framed Door with RV lock & Piano hinge
7 Way Electrical Plug
.040 Aluminum Screwless Exterior
Framed For Roof Vent
Brite Nose
Aluminum Door Hold Backs
ATP Aluminum Fenders
Seamless Aluminum Roof
3'' Top And 4'' Bottom Trim
(4) 5000# Recessed D Rings
Zinc Door Hardware with Aluminum Hinges
24''Stonegaurd
(2) 12 Volt Dome Light with Wall Switch
Exterior LED Lighting 4 Per Side
3/4''Drymax Floor
9MM White Vinyl Walls
3/16'' White Vinyl Ceiling with White Cover
D.O.T. - C.S.A Approved Safety Equipment
Upgrades:
Cast Aluminum Bullnose Trim Package:
* Cast Aluminum Corners-Front & Rear
* Brite Anodized Front Corners
* Bright Radius Cap
Skid Rollers Welded Under Rear (Pair)
14' Titan Lift
- 45AMP Converter Charger With Receptacles
With Battery, Wire To Battery And 7way Charge Line ,Pump Box Recessed In
Floor, Aluminum Center Decking On Titan
12 Volt LED Deluxe Dome Light (6) Total
12 Volt LED Deluxe Dome Light (6) Total
Additional LED Clearance or Marker Lights (4 Additional Per Side) Spaced Evenly
Black Rubber Coin - Disc. Rolled Flooring - Floor Only (RFT) & Upper Deck
Black Rubber Coin Ramp & Flap

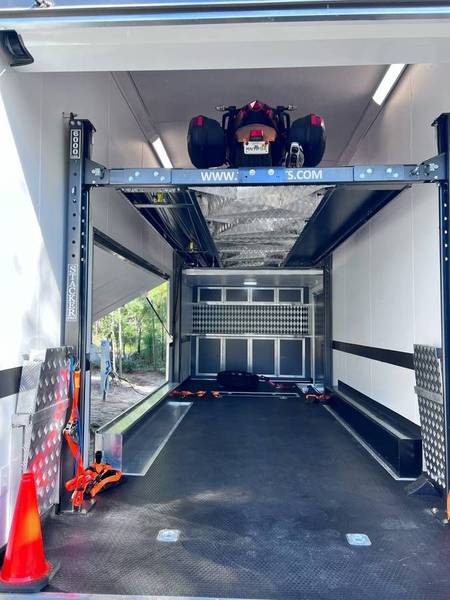

8' UPPER DECK 78'' AFF Light Duty 2x3 11Guage
UPGRADE #7000 Torsion Axle Upgrade
Triple 40" Spread Axles (Steel) Smooth Fenders
Heavy Duty Ramp 5000# Ramp Door 95'' X 96''
HEAVY DUTY RAMP DOOR SPRING
Premium Escape Door - 40" Spread Axle W-132" x H-72"
Premium Escape Doors come standard with the following:
* Top Hinge Gas Struts
* Removable Wheel Box
* Frame Mounted Step
* Keyed Aluminum Compression Latches
* Door Starts At 72'' Above Floor
RV Flush Mount Lock with Bar lock, Side Door
30AMP 110 Volt Package:
* (3) 48'' LED LIGHTS
* (1) Wall Switch
* (4) Wall Receptacles INCLUDING 1- FOR LIFT
* 30 Amp Panel with 25' Twist Lock Cord & Motor base Plug
24" Base Cabinet With Aluminum Counter Top for 8' Wide***WHITE
Trailer King ST235/80R16 Radial Tires
Loose - Shore cord, Keys
12”x88” heavy duty ATP Transition flap from loft to lift
Dual flow thru Vents
3rd ramp for lift
9.003 recessed D-rings in loft (4)
2 additional tie down on the lift front and rear
Winch plate
Frame mounted step
Electric Winch with remote
Enchantments:
Interior Wrap
Air Conditioning
B&W Motorcycle Mount Installed
All New 14 Ply Tires
